HS-SL385LC auto seat Swivel mechanism turntable with slider and lever campervan seat turn table with the runner RV seat rotating adjuster with rail
You are here: Home » Products » RV parts » RV interior & seat parts » Swivels » HS-SL385LC auto seat Swivel mechanism turntable with slider and lever campervan seat turn table with the runner RV seat rotating adjuster with rail
Share to:

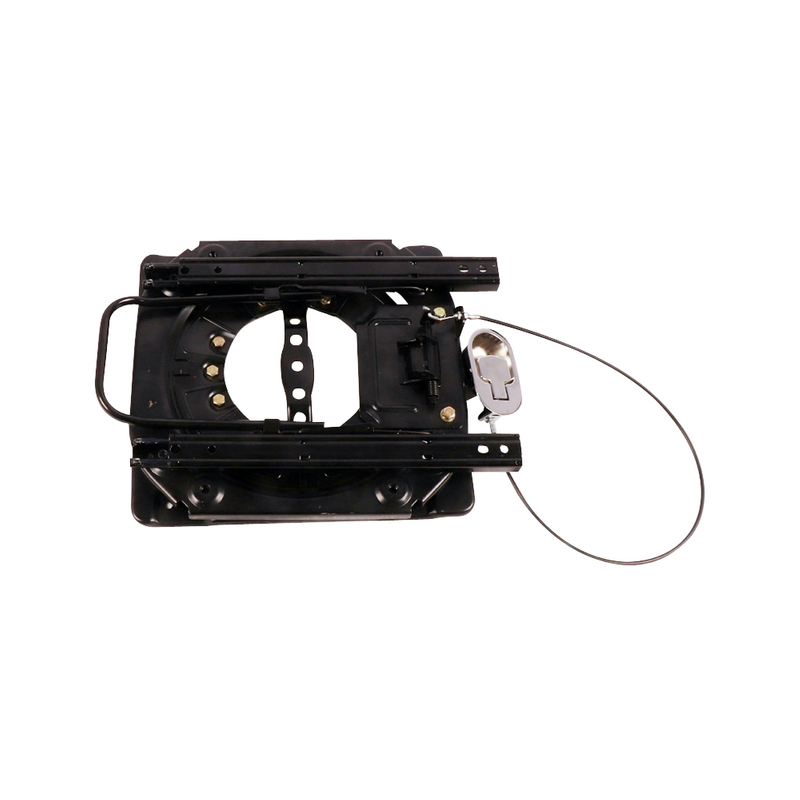

HS-SL385LC auto seat Swivel mechanism turntable with slider and lever campervan seat turn table with the runner RV seat rotating adjuster with rail

The little slide make the seat can go front and after
The rotating mechanism can change the seat orientation
The slider and swivel has the respectively operation lever
Quantity:
  • HS-WS-LC2
  • HWHongRV

Product Description

Product Category   :Rotating  Mechanism with slider

Product Code:         HS-SL385LC

Appearance size:390*360*40mm

Rotation Range:0º~360º

Adjust gears of the rotating:4

Adjust angle range :90°

Travel of the slider :22cm

Outer Slide Rail Length:385mm

Net weight/gross weight       :10kg/11kg

Carton size      400*400*100mm

Material:stainless steel, carbon steel, hot rolled steel , copper, iron, etc

Application:Great for MPV, caravan and motorhomes.

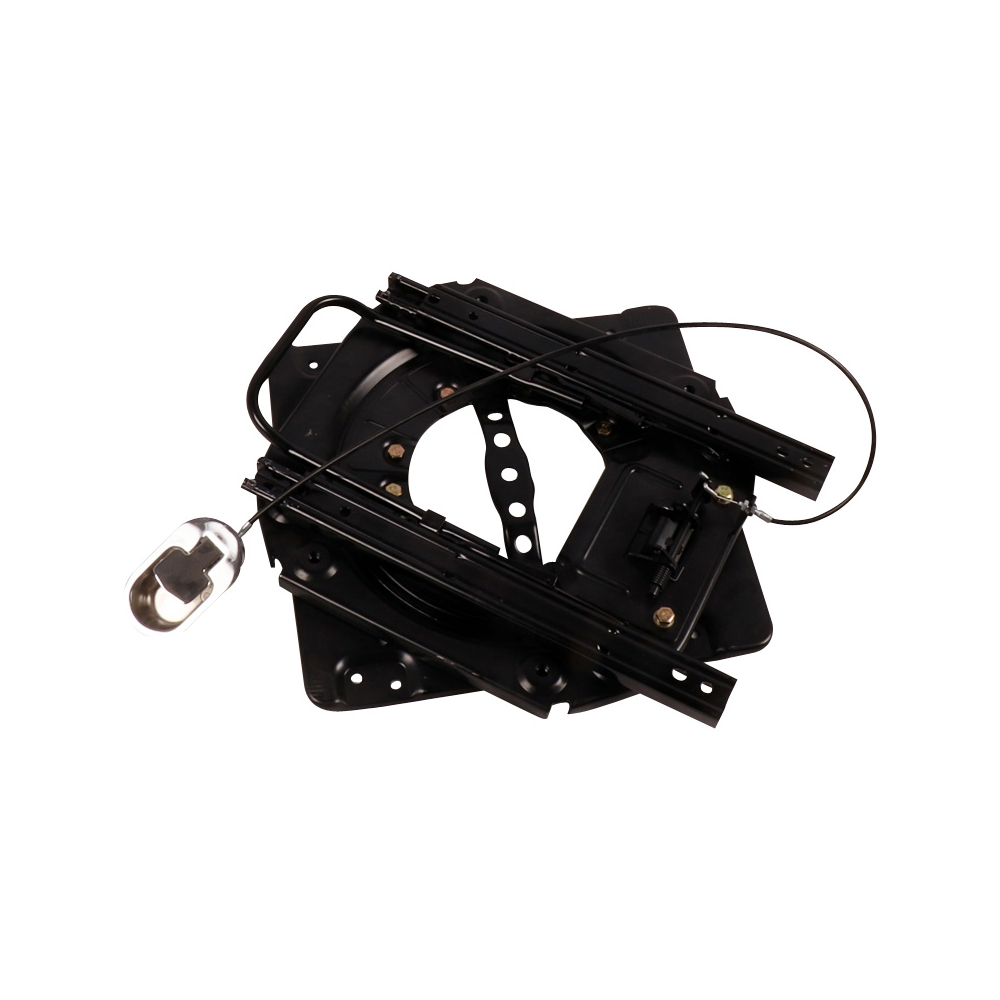

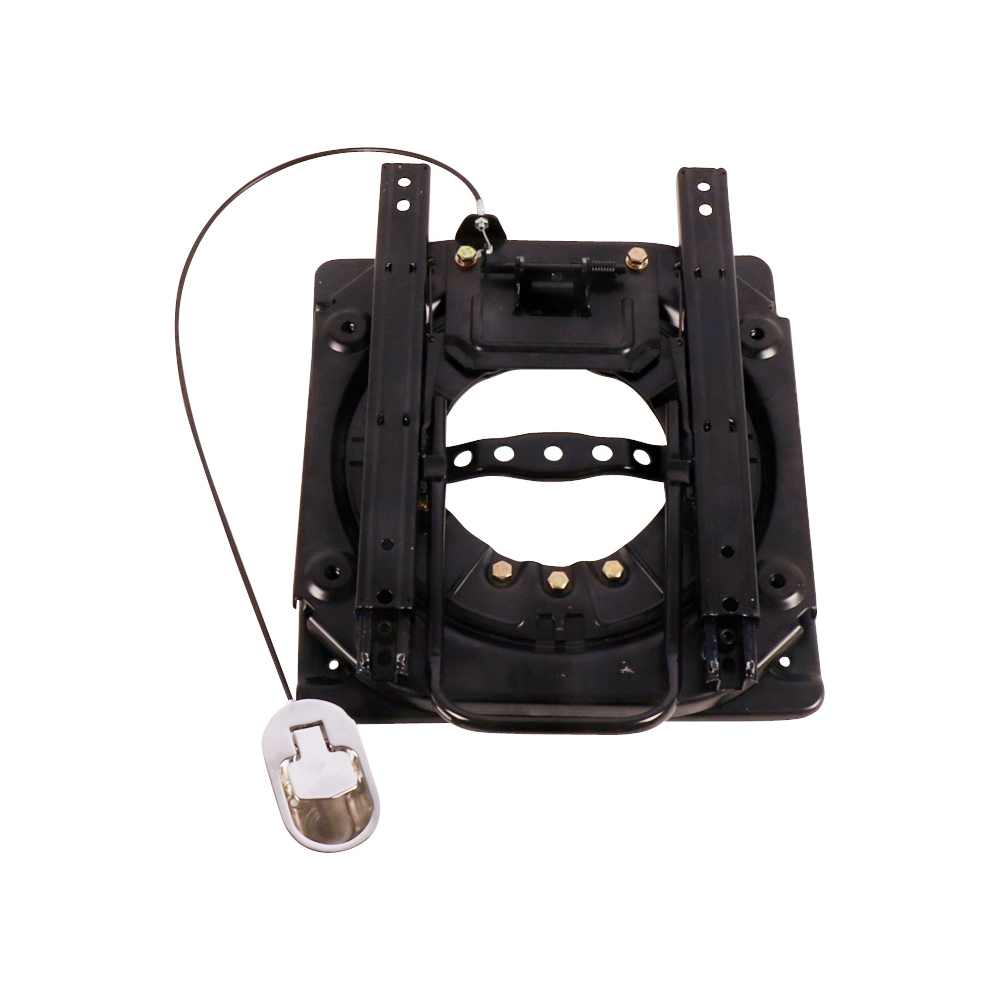

IMG_1739IMG_1732IMG_1739
