HS-135ADC56 Air pump for air Suspension seat used in the truck
You are here: Home » Products » Bus and truck parts » Truck Parts » Air suspension seat parts » HS-135ADC56 Air pump for air Suspension seat used in the truck
Share to:

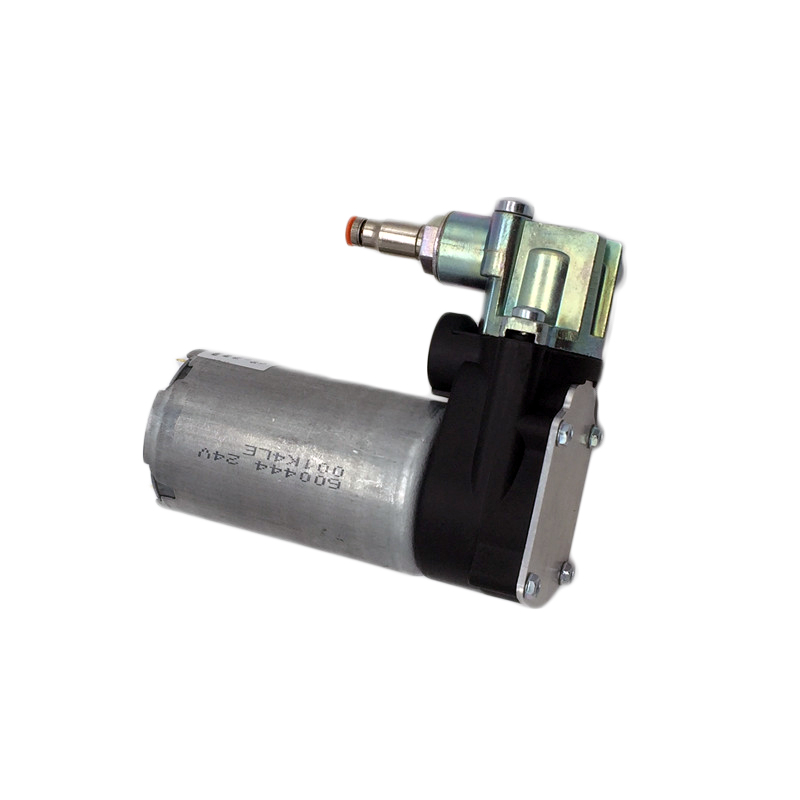

HS-135ADC56 Air pump for air Suspension seat used in the truck

Air pump
Quantity:
  • HS-135ADC56
  • HWHongRV

Product Description

MODEL NUMBER

135ADC56/12

135ADC56/24

HEAD   CONFIGURATION

Pressure Only

Pressure Only

STROKE

.56 inches

0.56 inches

PRESSURE

Flow @ 12V DC

Flow@24VDC

cfm @ psi

lpm @ bar



psi

bar

cfm

 lpm

cfm

lpm

0

0

0.54

15.3

0.54

15.3

10

0.5

0.48

14.2

0.48

14.2

20

1

0.42

12.7

0.42

12.7

30

1.5

0.38

11.6

0.38

11.6

40

2

0.33

10.6

0.33

10.6

50

3

0.3

9.1

0.3

9.1

60

5

0.27

6.8

0.27

6.8

70

7

0.24

4.8

0.24

4.8

80


0.22


0.22


90


0.19


0.19


100


0.17


0.17








MAX.   CONTINUOUS PRESSURE

-

-

-

-

MAX. INTERMITTENT   PRESSURE

87 psi

6.0 bar

87 psi

6 bar

MAX. DUTY   CYCLE (MINUTES ON/OFF AT 23°C)

1 min. on / 20   min. off

1min.on/20min.off

MAX. AMBIENT   AIR TEMP.

+149°F

+65˚C

+149°F

+65˚C

MIN. AMBIENT   START TEMP.

-22°F

-30˚C

-22°F

-30˚C

MAX. RESTART PRESSURE

100psi

8.3bar

120 psi

8.3 ar

MOTOR VOLTAGE

12V DC


24V DC

MOTOR TYPE

Permanent Magnet

Permanent Magnet

CURRENT AT   RATED LOAD (AMPS)

7.9

3.8

POWER AT RATED   LOAD (WATTS)

95

92

IN-RUSH   CURRENT (LOCKED ROTOR, AMPS)

29

17

CAPACITOR   VALUE

-

-

MIN. FULL LOAD   SPEED (RPM)

3915

4480

THERMAL   PROTECTOR

-

-

NET WEIGHT

1.16 lb

.53 kg

1.16 lb

0.53 g



IMG_6384_副本IMG_6379_副本2IMG_1782 (2)
